Neue Referenz-Objektive für Interferometer
  New reference optics for interferometers
If you want to see our new arrivals
 immediately, follow us on Facebook

For used interferometers click here

For USED reference optics click here

For new or used translation and tip/tilt stages click here


New Transmission spheres from MPF Optics
Surface Accuracy: 1/10, 1/20 or 1/30 wave PV, or better upon request

Standard Zygo Bayonet

Operating wavelength: 632.8nm

Operating temperature range: 22 +- 5 °C

Input beam diameter: 101.6mm for 4" or 152.4mm for 6"

Material of reference element: Fused Silica

Please ask for prices


4" Objectives: 4" f/0.55 4" f/0.65 4" f/0.75 4" f/1.1 4" f/1.5 4" f/1.9 4" f/3.3 4" f/4.8 4" f/7.2
Converger
4" f/7.2
Diverger
Numerical Aperture 0.91 0.77 0.67 0.46 0.33 0.26 0.15 0.10 0.07 0.07
F-Number 0.55 0.65 0.75 1.1 1.5 1.9 3.3 4.8 7.2 7.2
Angular Aperture 130.7° 100.5° 82.3° 55.6° 38.9° 30.3° 17.3° 12.1° 8.0° 8.0°
Radius of Reference Surface RM  [mm] -25.50 -40.50 -48.17 -65.50 -121.44 -163.12 -300.69 -449.0 -700.35 700.35
Maximum outside Sample Diameter DM allowed when accommodating Radii up to RM  [mm] 46 62 63.4 61.0 80.9 85.3 90.2 94.5 97.5 97.5
Maximum convex (concave) Radius that can be tested when outside Sample Diameter is larger than DM  [mm] 25 40 47 65 120 162 299 447 695 -705
Diameter x Length [mm] 150 x 175 150 x 155 140 x 68 140 x 72 140 x 72 140 x 72 140 x 72 140 x 72 140 x 72 140 x 68
Weight [kg] 4.0 3.9 2.1 2.5 1.7 1.7 2.0 2.0 1.6 1.5
Wavefront Deformation for single pass [Waves PV] <2.0 <2.0 <2.0 <1.5 <1.5 <1.5 <1.0 <1.0 <1.0 <1.0
Surface defects (according to ISO):  5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 40x0.25 5/ 40x0.25 5/ 20x0.25 5/ 20x0.25




Long Radius 4" Objectives: 4" f/11
Converger
4" f/11
Diverger
4" f/15
Converger
4" f/15
Diverger
4" f/25
Converger
4" f/25
Diverger
4" f/35
Converger
4" f/35
Diverger
4" f/50
Converger
4" f/50
Diverger
Numerical Aperture 0.05 0.045 0.033 0.033 0.02 0.02 0.014 -0.014 0.01 -0.01
F-Number 11 11 15 15 24.3 24.3 34.9 34.9 50 50
Angular Aperture 5.4° 5.4° 3.8° 3.8° 2.4° 2.4° 1.6° 1.6° 1.1° 1.1°
Radius of Reference Surface RM  [mm] -1051.7 1051.7 -1517.0 1517.0 -2449.4 2449.4 -3520 3500 -5010 5010
Maximum outside Sample Diameter DM allowed when accommodating Radii up to RM  [mm] 98.5 98.5 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
Maximum convex (concave) Radius that can be tested when outside Sample Diameter is larger than DM  [mm] 1045 -1055 1520 -1510 2460 -2440 3500 -3490 4980 -5040
Diameter x Length [mm] 140 x 72 140 x 72 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45
Weight [kg] 1.6 1.5 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Wavefront Deformation for single pass [Waves PV] <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0
Surface defects (according to ISO):  5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25



Very long Radius 4" Objectives: 4" f/65
Converger
4" f/65
Diverger
4" f/75
Converger
4" f/75
Diverger
4" f/85
Converger
4" f/85
Diverger
4" f/100
Converger
4" f/100
Diverger
4" f/115
Converger
4" f/115
Diverger
4"
Flat
Numerical Aperture 0.0077 -0.0077 0.0067 -0.0067 0.0059 -0.0059 0.005 -0.005 0.0043 -0.0043 -
F-Number 65 65 75 75 85- 85 100 100 115 115 -
Angular Aperture 0.88° 0.88° 0.76° 0.76° 0.67° 0.67° 0.57° 0.57° 0.5° 0.5° -
Radius of Reference Surface RM  [mm] -6500 6500 -7500 7500 -8500- 8500 -10000 10000 -11500 11500 infinite
Maximum outside Sample Diameter DM allowed when accommodating Radii up to RM  [mm] 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 101.6
Maximum convex (concave) Radius that can be tested when outside Sample Diameter is larger than DM  [mm] 6450 -6550 7450 -7550 8450 -8550 9950 -10050 11450 .11550 -
Diameter x Length [mm] 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45 140 x 45
Weight [kg] 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Wavefront Deformation for single pass [Waves PV] <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0 <1.0
Surface defects (according to ISO):  5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25 5/ 10x0.25




6" Objectives: 6" f/1.1 6" f/1.1s 6" f/2.2 6" f/5.0 6" Flat
Numerical Aperture 0.45 0.45 0.228 0.09 -
F-Number 1.1 1.1 2.19 5.0 -
Angular Aperture 53.49° 55.6° 26.36° 10.0° -
Radius of Reference Surface RM  [mm] -109 -165.0 -284.90 -715.6 infinite
Maximum outside Sample Diameter DM allowed when accommodating Radii up to RM  [mm] 102 150 131 145 152.4
Maximum convex (concave) Radius that can be tested when outside Sample Diameter is larger than DM  [mm] 107 163 280 710 -
Diameter x Length [mm] 190 x 109 210 x 240 190 x 109 190 x 109 190 x 60
Weight [kg] 7.0 12.7 4.9 3.5 2.2
Wavefront Deformation for single Pass
[Waves PV]
<2.5CCFF"><2.5 <2.5 <2.0 <1.5 <1.0
Surface defects (according to ISO):  5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 60x0.25 5/ 10x0.25


All MPF Transmission Spheres come in a wood box and include a test certificate.

In stock and immediately available:

4" f/0.65 1/30 wave
4" f/0.75 1/20 wave
4" f/1.5 1/30 wave
4" f/1.9 1/20 wave
4" f/3.3 1/30 wave and 1/40 wave
4" f/4.8 1/20 wave
4" f/7.2 1/20 wave
4" f/7.2 Diverger 1/20 wave
4" f/11 1/20 wave
4" f/15 Converger 1/20 wave
4" f/25 Converger 1/20 wave
4" f/50 Converger 1/20 wave
4" f/75 Converger 1/20 wave
4" transmission flat 1/20 wave

MPF Optics

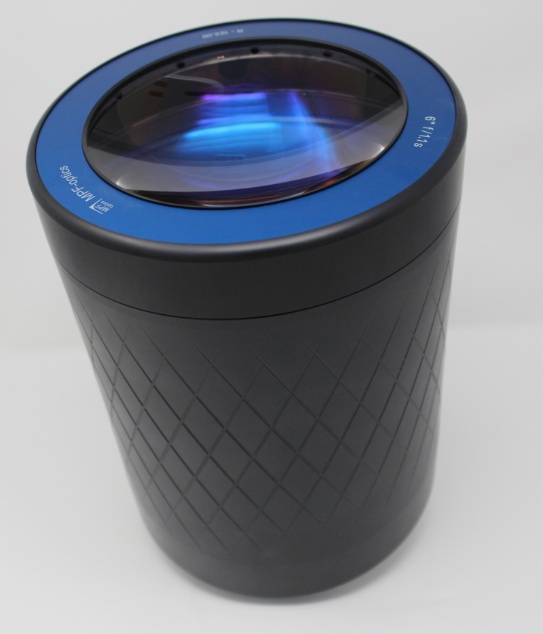

Super 6" f/1.1s Transmission sphere

6" input, internal beam,
expander to 8" diameter,
true 6" f/1.1 output

Surface Accuracy:
1/10 or 1/20  wave PV

Numerical aperture: 0.45
Radius of reference element: 165mm


Diameter 210 mm
Length 240 mm
Weight 12.7 kg

6" Zygo bayonet

Please ask for prices

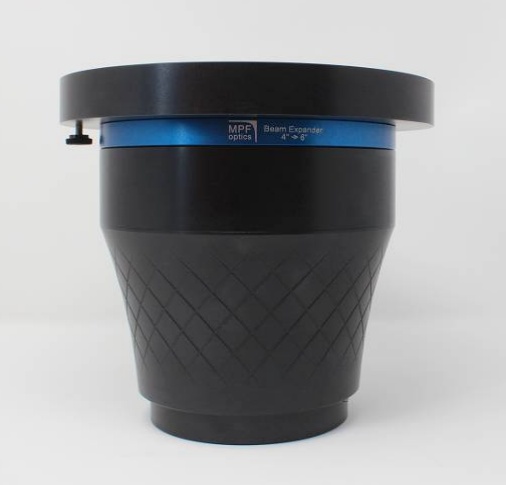

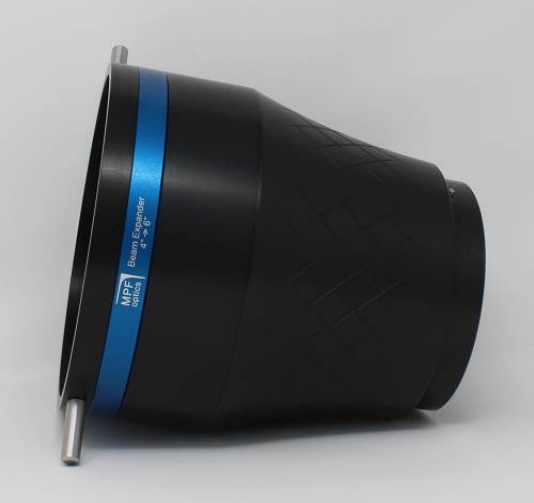

MPF Optics  4" --> 6" Beam expander, horizontal version

Input:  4"  Zygo bayonet

Diameter 180mm (without the bolts), Length 230mm

Weight 3.7 kg

Wavefront deformation in single pass: < 1.5 waves PV

Please ask for prices

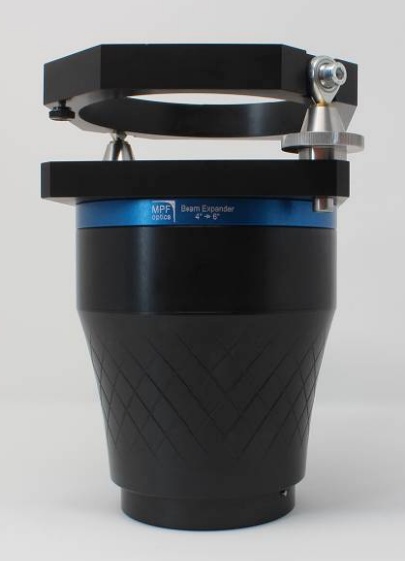

MPF Optics  4" --> 6" Beam Expander, Vertical Version with 6" Zygo Bayonet

Input: 4" Zygo bayonet    Output: 6" Zygo bayonet

Diameter about 222mm, Length about 227mm

Weight about 4.0 kg

Wavefront deformation in single pass: < 1.5 waves PV

Please ask for prices

MPF Optics  4" --> 6" Beam Expander, Vertical Version with Tip/Tilt and 6" Zygo Bayonet

Input: 4" Zygo bayonet    Output: 6" Zygo bayonet

Length about 248mm, Size about 200mm x 200mm

Please ask for prices


New Transmission spheres from AdlOptica
The τFRIN (tauFRIN) system from AdlOptica consists of a 4" to 5"+ beam expander with replaceable transmission spheres.
This design allows for larger diameter of the reference surface.
At the input side the beam expander has a standard 4" Zygo bayonet.
Surface Accuracy: 1/15 wave PV
Operating wavelength: 632.8nm
Material of reference surface: Fused Silica
Recommended temperature range: 21 +-2 °C

Please ask for prices


Model F/# Radius of Reference Surface Diameter of Reference Surface Numerical Aperture
τFRIN 1:0.65 CX 1:0.65 44mm concave 68mm 0.77
τFRIN 1:0.95 CX 1:0.95 90mm concave 95mm 0.53
τFRIN 1:1.5 CX 1:1.5 172mm concave 116mm 0.33
τFRIN 1:3.3 CX 1:3.3 422mm concave 128mm 0.15
τFRIN 1:7.1 CX 1:7.1 958mm concave 135mm 0.07
τFRIN Adapter-Expander

CaliBall TM

CaliBall TM

CaliBall is a 25.4mm diameter, high precision silicon nitride ball and kinematic mount used to calibrate phase-measuring interferometers by determining the errors of the transmission sphere reference-surface. The CaliBall is located with its center at the focus of the transmission sphere and aligned to better than one fringe. A measurement of the ball is taken, the ball picked up, arbitrarily rotated and replaced on its mount. The center of the ball will return to the original position due to the kinematic mount. Another measurement of the ball is then taken.  This process is repeated about a dozen times and the interferograms are averaged. The average represents the errors in the transmission sphere and interferometer because the ball is extremely round and the small imperfections of the ball average to zero. The calibration can be done in as little as 10 minutes and the result is difficult to dispute. Best used with low F/# transmission spheres.

Price: 650.- EUR plus VAT

CaliBall2 TM

This is the second version of the CaliBall, which is used if the optical axis is horizontal. It fits into a standard 4" Zygo bayonet mount.

Price:  800.- EUR plus VAT



New Transmission Flats from other Manufacturers

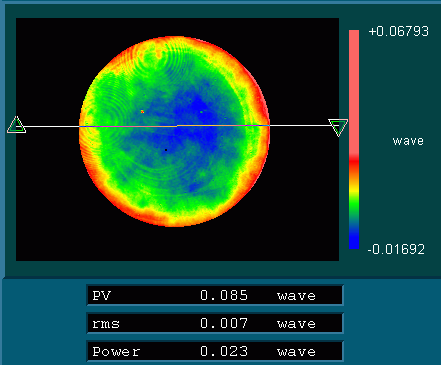

Surface Error (Average of 10 measurements)
-- 4" or smaller optics were tested against a 4" 1/70 wave PVr flat
-- Aluminized optics were tested against a 6" 1/43 wave PV Dynaflect flat from Zygo
Description        Pictures

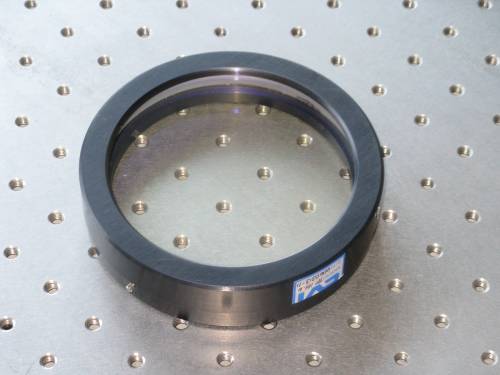

CVI Technical Optics Ltd. 4"
Transmission Flat


This TF is new !

Serial Number:  6060313-11
AE stock number: 62

Wood Box: yes
Foam in Box: yes

Price:
1800.- EUR plus VAT
